Automotive Starter Battery

JIS car battery

YNC JIS series maintenance free automotive starter battery has very good low
temperature starting ability,super long shelf life and maintenance free under
normal situation.Those batteries are manufactured under JIS technology
standard,less electrolyte is consumed,good anti-vibration capacity.It's good
used for car, tractor,mine-truck and the starting,lighting for the construction
engineer vehicles,etc.

Typical Applications

  1. Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
  2. Starting and ignition for the diesel motor or gasoline motor
  3. It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop.

Specifications

JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions
(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
B20 36B20L NS40L 12 32 39 260 195 127 200 221 0 3 B0 Y 9.7
36B20R NS40 12 32 39 260 195 127 200 221 1 3 B0 Y 9.7
36B20LS NS40L(S) 12 32 39 260 195 127 200 221 0 1 B0 Y 9.7
36B20RS NS40(S) 12 32 39 260 195 127 200 221 1 1 B0 Y 9.7
38B20L NS40ZL 12 36 43 265 195 127 200 221 0 3 B0 Y 10.1
38B20R NS40Z 12 36 43 265 195 127 200 221 1 3 B0 Y 10.1
38B20LS NS40ZL(S) 12 36 43 265 195 127 200 221 0 1 B0 Y 10.1
38B20RS NS40Z(S) 12 36 43 265 195 127 200 221 1 1 B0 Y 10.1
44B20L / 12 40 51 300 195 127 200 221 0 3 B0 Y 10.6
44B20R / 12 40 51 300 195 127 200 221 1 3 B0 Y 10.6
44B20LS / 12 40 51 300 195 127 200 221 0 1 B0 Y 10.6
44B20RS / 12 40 51 300 195 127 200 221 1 1 B0 Y 10.6
B20Ⅰ 36B20ⅠL NS40L 12 32 39 260 195 126 201 221 0 3 B0 Y 9.7
36B20ⅠR NS40 12 32 39 260 195 126 201 221 1 3 B0 Y 9.7
36B20ⅠLS NS40L(S) 12 32 39 260 195 126 201 221 0 1 B0 Y 9.7
36B20ⅠRS NS40(S) 12 32 39 260 195 126 201 221 1 1 B0 Y 9.7
38B20ⅠL NS40ZL 12 36 43 265 195 126 201 221 0 3 B0 Y 10.1
38B20ⅠR NS40Z 12 36 43 265 195 126 201 221 1 3 B0 Y 10.1
38B20ⅠLS NS40ZL(S) 12 36 43 265 195 126 201 221 0 1 B0 Y 10.1
38B20ⅠRS NS40Z(S) 12 36 43 265 195 126 201 221 1 1 B0 Y 10.1
44B20ⅠL / 12 40 51 300 195 126 201 221 0 3 B0 Y 10.6
44B20ⅠR / 12 40 51 300 195 126 201 221 1 3 B0 Y 10.6
44B20ⅠLS / 12 40 51 300 195 126 201 221 0 1 B0 Y 10.6
44B20ⅠRS / 12 40 51 300 195 126 201 221 1 1 B0 Y 10.6
JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
B24 32B24L N40L 12 40 50 280 236 127 200 221 0 3 B0 Y 11.5
32B24R N40 12 40 50 280 236 127 200 221 1 3 B0 Y 11.5
32B24LS N40L(S) 12 40 50 280 236 127 200 221 0 1 B0 Y 11.5
32B24RS N40(S) 12 40 50 280 236 127 200 221 1 1 B0 Y 11.5
46B24L NS60L 12 45 56 295 236 127 200 221 0 3 B0 Y 12.1
46B24R NS60 12 45 56 295 236 127 200 221 1 3 B0 Y 12.1
46B24LS NS60L(S) 12 45 56 295 236 127 200 221 0 1 B0 Y 12.1
46B24RS NS60(S) 12 45 56 295 236 127 200 221 1 1 B0 Y 12.1
55B24L NX100-S6L 12 48 64 370 236 127 200 221 0 3 B0 Y 12.4
55B24R NX100-S6 12 48 64 370 236 127 200 221 1 3 B0 Y 12.4
55B24LS NX100-S6L(S) 12 48 64 370 236 127 200 221 0 1 B0 Y 12.4
55B24RS NX100-S6(S) 12 48 64 370 236 127 200 221 1 1 B0 Y 12.4
B24Ⅰ 32B24ⅠL N40L 12 40 50 280 237 128 200 220 0 3 B0 Y 11.5
32B24ⅠR N40 12 40 50 280 237 128 200 220 1 3 B0 Y 11.5
32B24ⅠLS N40L(S) 12 40 50 280 237 128 200 220 0 1 B0 Y 11.5
32B24ⅠRS N40(S) 12 40 50 280 237 128 200 220 1 1 B0 Y 11.5
46B24ⅠL NS60L 12 45 56 295 237 128 200 220 0 3 B0 Y 12.1
46B24ⅠR NS60 12 45 56 295 237 128 200 220 1 3 B0 Y 12.1
46B24ⅠLS NS60L(S) 12 45 56 295 237 128 200 220 0 1 B0 Y 12.1
46B24ⅠRS NS60(S) 12 45 56 295 237 128 200 220 1 1 B0 Y 12.1
55B24ⅠL NX100-S6L 12 48 64 370 237 128 200 220 0 3 B0 Y 12.4
55B24ⅠR NX100-S6 12 48 64 370 237 128 200 220 1 3 B0 Y 12.4
55B24ⅠLS NX100-S6L(S) 12 48 64 370 237 128 200 220 0 1 B0 Y 12.4
55B24ⅠRS NX100-S6(S) 12 48 64 370 237 128 200 220 1 1 B0 Y 12.4
JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
B24ⅠX 32B24ⅠXL N40L 12 40 50 280 237 136 200 220 0 3 B1 Y 11.5
32B24ⅠXR N40 12 40 50 280 237 136 200 220 1 3 B1 Y 11.5
32B24ⅠXLS N40L(S) 12 40 50 280 237 136 200 220 0 1 B1 Y 11.5
32B24ⅠXRS N40(S) 12 40 50 280 237 136 200 220 1 1 B1 Y 11.5
46B24ⅠXL NS60L 12 45 56 295 237 136 200 220 0 3 B1 Y 12.1
46B24ⅠXR NS60 12 45 56 295 237 136 200 220 1 3 B1 Y 12.1
46B24ⅠXLS NS60L(S) 12 45 56 295 237 136 200 220 0 1 B1 Y 12.1
46B24ⅠXRS NS60(S) 12 45 56 295 237 136 200 220 1 1 B1 Y 12.1
55B24ⅠXL NX100-S6L 12 48 64 370 237 136 200 220 0 3 B1 Y 12.4
55B24ⅠXR NX100-S6 12 48 64 370 237 136 200 220 1 3 B1 Y 12.4
55B24ⅠXLS NX100-S6L(S) 12 48 64 370 237 136 200 220 0 1 B1 Y 12.4
55B24ⅠXRS NX100-S6(S) 12 48 64 370 237 136 200 220 1 1 B1 Y 12.4
JIS D20 50D20L / 12 50 63 310 200 171 198 219 0 1 B0 Y 13.2
50D20R / 12 50 63 310 200 171 198 219 1 1 B0 Y 13.2
D23 55D23L / 12 60 74 320 230 171 200 221 0 1 B0 Y 15.5
55D23R / 12 60 74 320 230 171 200 221 1 1 B0 Y 15.5
75D23L / 12 65 95 465 230 171 200 221 0 1 B0 Y 16.2
75D23R / 12 65 95 465 230 171 200 221 1 1 B0 Y 16.2
D23Ⅰ 55D23ⅠL / 12 60 74 320 230 170 199 219 0 1 B0 Y 15.5
55D23ⅠR / 12 60 74 320 230 170 199 219 1 1 B0 Y 15.5
75D23ⅠL / 12 65 95 465 230 170 199 219 0 1 B0 Y 16.2
75D23ⅠR / 12 65 95 465 230 170 199 219 1 1 B0 Y 16.2
D23ⅠX 55D23ⅠXL / 12 60 74 320 230 174 199 219 0 1 B1 Y 15.5
55D23ⅠXR / 12 60 74 320 230 174 199 219 1 1 B1 Y 15.5
75D23ⅠXL / 12 65 95 465 230 174 199 219 0 1 B1 Y 16.2
75D23ⅠXR / 12 65 95 465 230 174 199 219 1 1 B1 Y 16.2
JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
D26 48D26XL N50L 12 50 72 250 269 173 203 224 0 1 B1 Y 15.8
48D26XR N50 12 50 72 250 269 173 203 224 1 1 B1 Y 15.8
55D26XL N50ZL 12 60 82 290 269 173 203 224 0 1 B1 Y 16.9
55D26XR N50Z 12 60 82 290 269 173 203 224 1 1 B1 Y 16.9
65D26XL NS70L 12 65 89 370 269 173 203 224 0 1 B1 Y 17.7
65D26XR NS70 12 65 89 370 269 173 203 224 1 1 B1 Y 17.7
75D26XL NS70L 12 65 98 450 269 173 203 224 0 1 B1 Y 17.7
75D26XR NS70 12 65 98 450 269 173 203 224 1 1 B1 Y 17.7
80D26XL NX110-5L 12 70 103 490 269 173 203 224 0 1 B1 Y 17.9
80D26XR NX110-5 12 70 103 490 269 173 203 224 1 1 B1 Y 17.9
D26Ⅰ 48D26ⅠL N50L 12 50 72 250 256 170 203 225 0 1 B0 Y 15.1
48D26ⅠR N50 12 50 72 250 256 170 203 225 1 1 B0 Y 15.1
55D26ⅠL N50ZL 12 60 82 290 256 170 203 225 0 1 B0 Y 16.3
55D26ⅠR N50Z 12 60 82 290 256 170 203 225 1 1 B0 Y 16.3
65D26ⅠL NS70L 12 65 89 370 256 170 203 225 0 1 B0 Y 17.0
65D26ⅠR NS70 12 65 89 370 256 170 203 225 1 1 B0 Y 17.0
75D26ⅠL NS70L 12 65 98 450 256 170 203 225 0 1 B0 Y 17.0
75D26ⅠR NS70 12 65 98 450 256 170 203 225 1 1 B0 Y 17.0
80D26ⅠL NX110-5L 12 70 103 490 256 170 203 225 0 1 B0 Y 17.5
80D26ⅠR NX110-5 12 70 103 490 256 170 203 225 1 1 B0 Y 17.5
D31X 65D31XL N70L 12 70 97 340 303 170 201 222 0 1 B1 Y 19.3
65D31XR N70 12 70 97 340 303 170 201 222 1 1 B1 Y 19.3
75D31XL N70ZL 12 75 116 380 303 170 201 222 0 1 B1 Y 20.0
75D31XR N70Z 12 75 116 380 303 170 201 222 1 1 B1 Y 20.0
95D31XL NX120-7L 12 80 125 565 303 170 201 222 0 1 B1 Y 20.4
95D31XR NX120-7 12 80 125 565 303 170 201 222 1 1 B1 Y 20.4
105D31XL / 12 85 132 655 303 170 201 222 0 1 B1 Y 21.0
105D31XR / 12 85 132 655 303 170 201 222 1 1 B1 Y 21.0
JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
D31ⅠX 65D31ⅠXL N70L 12 70 97 340 304 171 203 224 0 1 B1 Y 19.3
65D31ⅠXR N70 12 70 97 340 304 171 203 224 1 1 B1 Y 19.3
75D31ⅠXL N70ZL 12 75 116 380 304 171 203 224 0 1 B1 Y 20.0
75D31ⅠXR N70Z 12 75 116 380 304 171 203 224 1 1 B1 Y 20.0
95D31ⅠXL NX120-7L 12 80 125 565 304 171 203 224 0 1 B1 Y 20.4
95D31ⅠXR NX120-7 12 80 125 565 304 171 203 224 1 1 B1 Y 20.4
105D31ⅠXL / 12 85 132 655 304 171 203 224 0 1 B1 Y 21.1
105D31ⅠXR / 12 85 132 655 304 171 203 224 1 1 B1 Y 21.1
E41 95E41L N100L 12 100 150 475 398 173 207 227 0 1 B0 Y 26.3
95E41R N100 12 100 150 475 398 173 207 227 1 1 B0 Y 26.3
105E41L N100ZL 12 105 160 540 398 173 207 227 0 1 B0 Y 27.0
105E41R N100Z 12 105 160 540 398 173 207 227 1 1 B0 Y 27.0
115E41L N100ZL 12 110 170 610 398 173 207 227 0 1 B0 Y 27.5
115E41R N100Z 12 110 170 610 398 173 207 227 1 1 B0 Y 27.5
130E41L NX200-10L 12 120 195 680 398 173 207 227 0 1 B0 Y 28.2
130E41R NX200-10 12 120 195 680 398 173 207 227 1 1 B0 Y 28.2
E41Ⅰ 95E41ⅠL N100L 12 100 150 475 409 170 209 233 0 1 B0 Y 26.3
95E41ⅠR N100 12 100 150 475 409 170 209 233 1 1 B0 Y 26.3
105E41ⅠL N100ZL 12 105 160 540 409 170 209 233 0 1 B0 Y 27.0
105E41ⅠR N100Z 12 105 160 540 409 170 209 233 1 1 B0 Y 27.0
115E41ⅠL N100ZL 12 110 170 610 409 170 209 233 0 1 B0 Y 27.5
115E41ⅠR N100Z 12 110 170 610 409 170 209 233 1 1 B0 Y 27.5
130E41ⅠL NX200-10L 12 120 195 680 409 170 209 233 0 1 B0 Y 28.2
130E41ⅠR NX200-10 12 120 195 680 409 170 209 233 1 1 B0 Y 28.2
JIS
NEW
Type		 JIS
New
Type		 JIS
OLD
Type		 Nominal
Voltage(V)		 C20
Capacity
(AH)		 RC
(min)		 CCA
(A)
@-18℃		 Overall
Dimensions(mm)		 Cell
Layout		 Terminal Hold
down		 Handles Wet
Weight
(Approx)
(kg)
L W H TH
F51 115F51 N120L 12 120 180 575 507 169 203 224 4 1 B0 Y 32.0
115F51B N120L 12 120 180 575 507 169 203 224 4 4 B0 Y 32.0
115F51R N120 12 120 180 575 507 169 203 224 3 1 B0 Y 32.0
115F51BR N120 12 120 180 575 507 169 203 224 3 4 B0 Y 32.0
145F51 NS150L 12 135 225 735 507 169 203 224 4 1 B0 Y 34.6
145F51B NS150L 12 135 225 735 507 169 203 224 4 4 B0 Y 34.6
145F51 NS150 12 135 225 735 507 169 203 224 3 1 B0 Y 34.6
145F51B NS150 12 135 225 735 507 169 203 224 3 4 B0 Y 34.6
G51 145G51 N150L 12 150 / 685 512 199 204 225 4 1 B0 Y 43.7
145G51B N150L 12 150 / 685 512 199 204 225 4 4 B0 Y 43.7
145G51R N150 12 150 / 685 512 199 204 225 3 1 B0 Y 43.7
145G51BR N150 12 150 / 685 512 199 204 225 3 4 B0 Y 43.7
165G51 NS200L 12 165 / 710 512 199 204 225 4 1 B0 Y 45.5
165G51B NS200L 12 165 / 710 512 199 204 225 4 4 B0 Y 45.5
165G51R NS200 12 165 / 710 512 199 204 225 3 1 B0 Y 45.5
165G51BR NS200 12 165 / 710 512 199 204 225 3 4 B0 Y 45.5
195G51 N180L 12 180 / 930 512 199 204 225 4 1 B0 Y 47.0
195G51B N180L 12 180 / 930 512 199 204 225 4 4 B0 Y 47.0
195G51R N180 12 180 / 930 512 199 204 225 3 1 B0 Y 47.0
195G51BR N180 12 180 / 930 512 199 204 225 3 4 B0 Y 47.0
H52 190H52 N200L 12 200 370 765 524 260 216 236 4 1 B0 Y 56.0
190H52B N200L 12 200 370 765 524 260 216 236 4 4 B0 Y 56.0
190H52R N200 12 200 370 765 524 260 216 236 3 1 B0 Y 56.0
190H52BR N200 12 200 370 765 524 260 216 236 3 4 B0 Y 56.0
245H52 N220L 12 220 405 1170 524 260 216 236 4 1 B0 Y 60.0
245H52B N220L 12 220 405 1170 524 260 216 236 4 4 B0 Y 60.0
245H52R N220 12 220 405 1170 524 260 216 236 3 1 B0 Y 60.0
245H52BR N220 12 220 405 1170 524 260 216 236 3 4 B0 Y 60.0

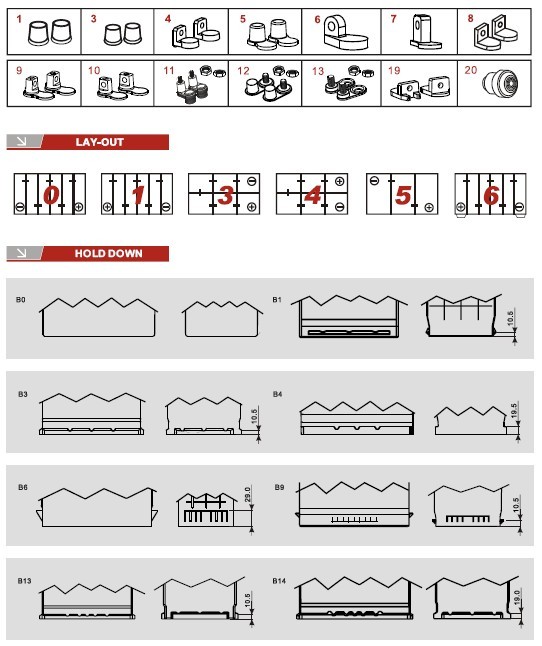

Terminal picture

jis terminal, car battery, ups battery
